| Product Attribute | Attribute Value |
|---|---|
| Agency Approvals | UL, CSA |
| Amperage | 30 A |
| Base Material | Nylon Polyester |
| Color | Black |
| Contact Material | Brass |
| Contact Type | Socket |
| Cover Material | Nylon (Top) |
| Current Rating | 30 A |
| Dielectric Rating | 2000 V (Min.) |
| Family Name | Twist-Lock® Family |
| Housing Material | Black Nylon (Top), Nylon Polyester (Base) |
| Material, Ground Screw | Bronze |
| Material, Terminal Clamp | Brass |
| Material, Terminal Screw | Bronze |
| NEMA Type | L6-30R |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Primary Type | Twist-Lock |

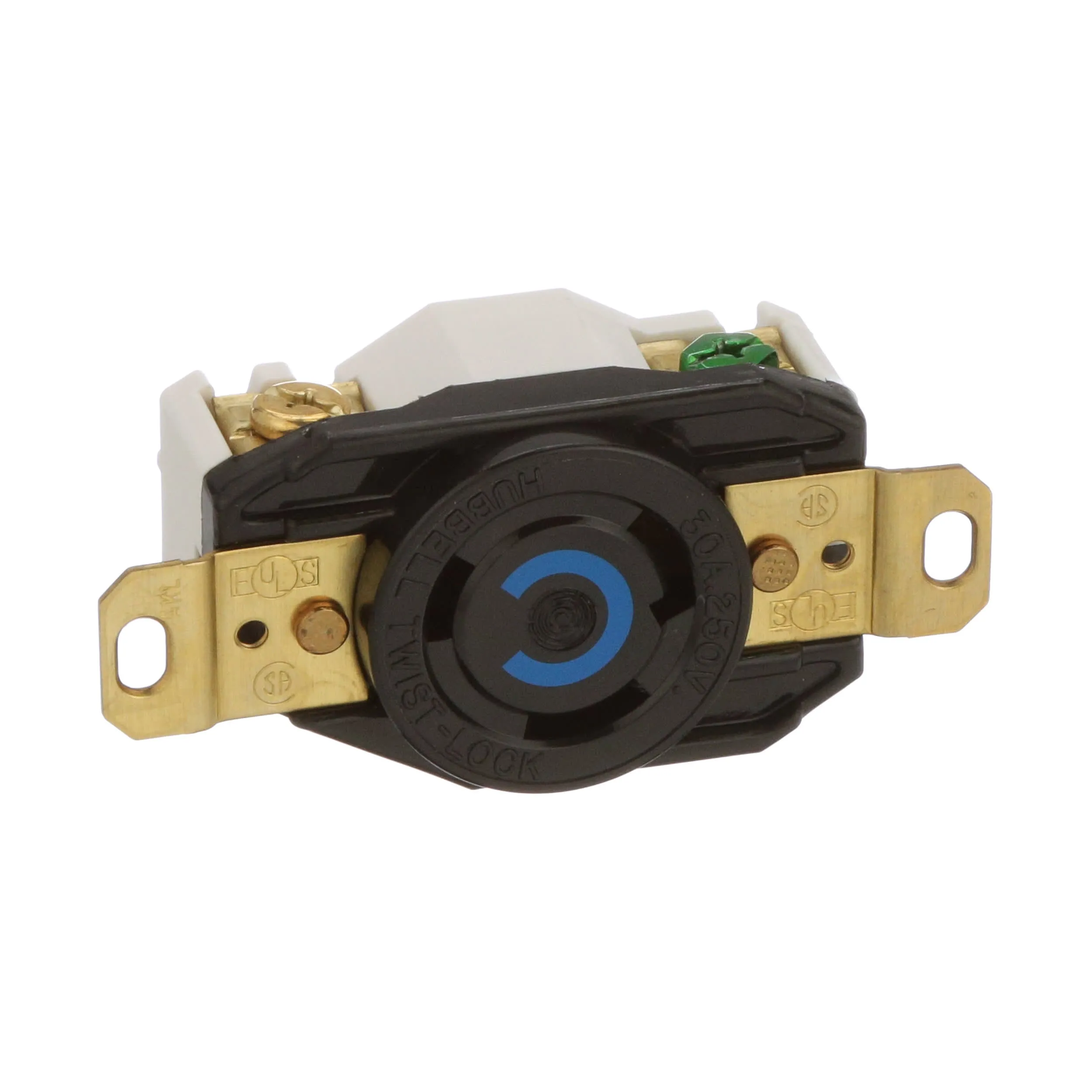

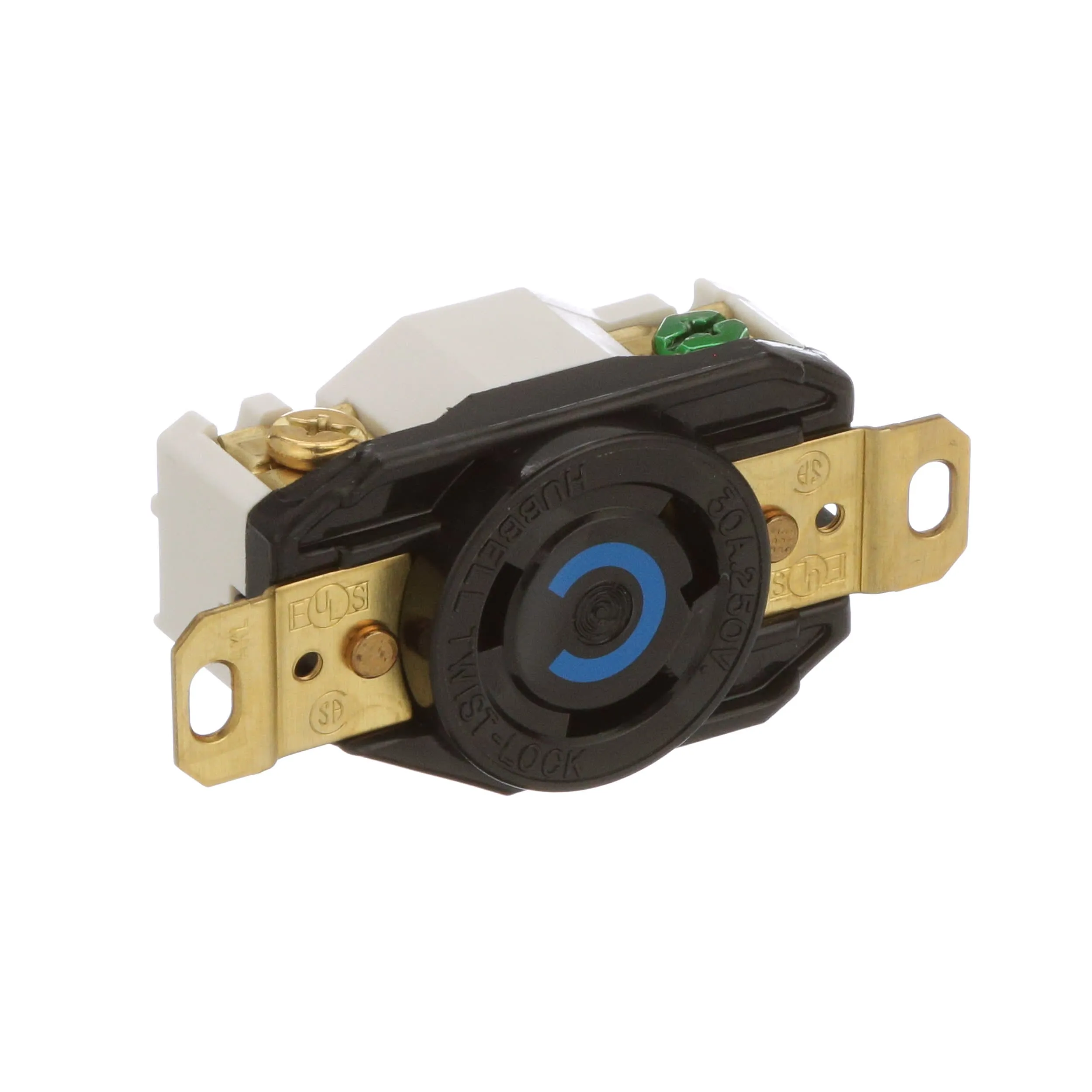

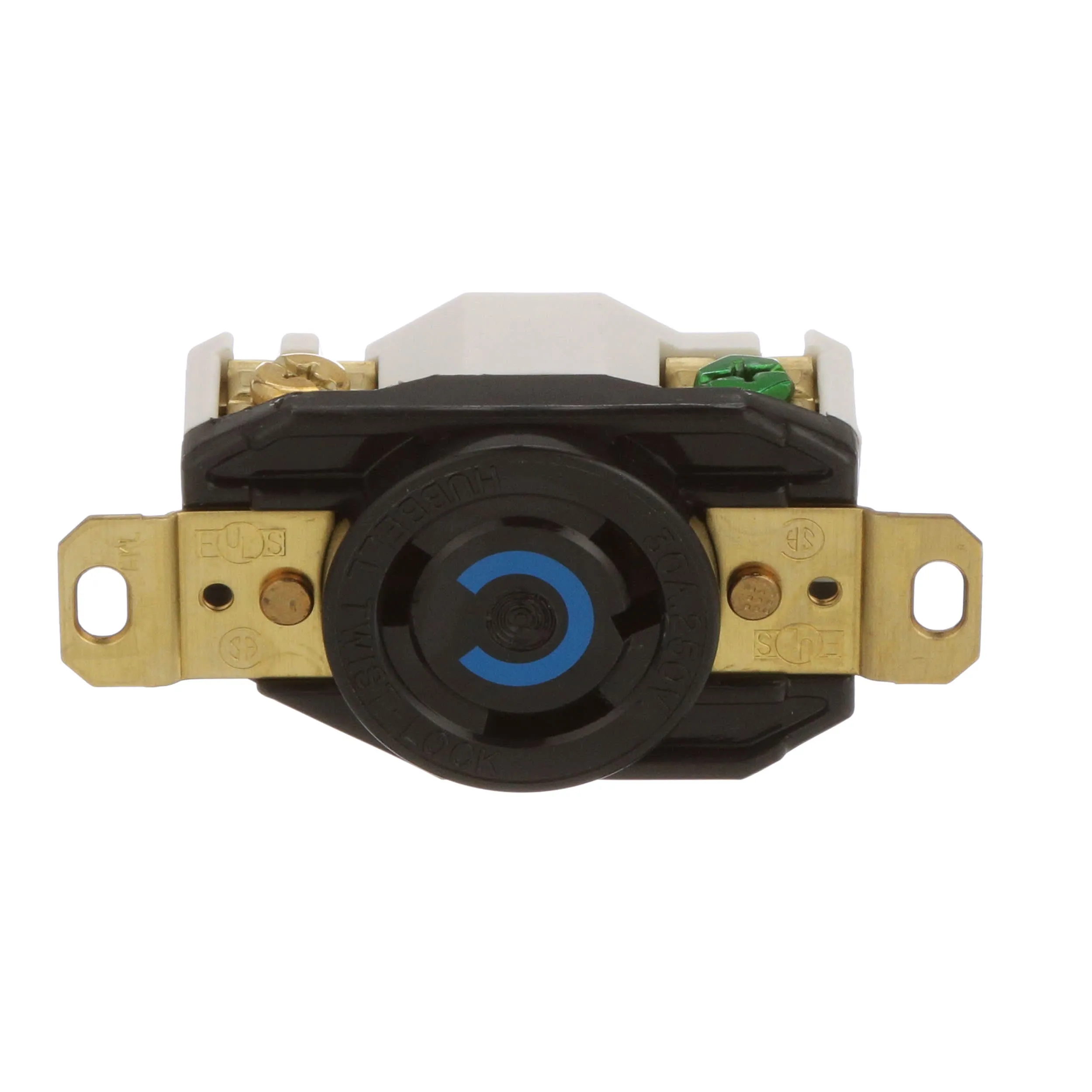

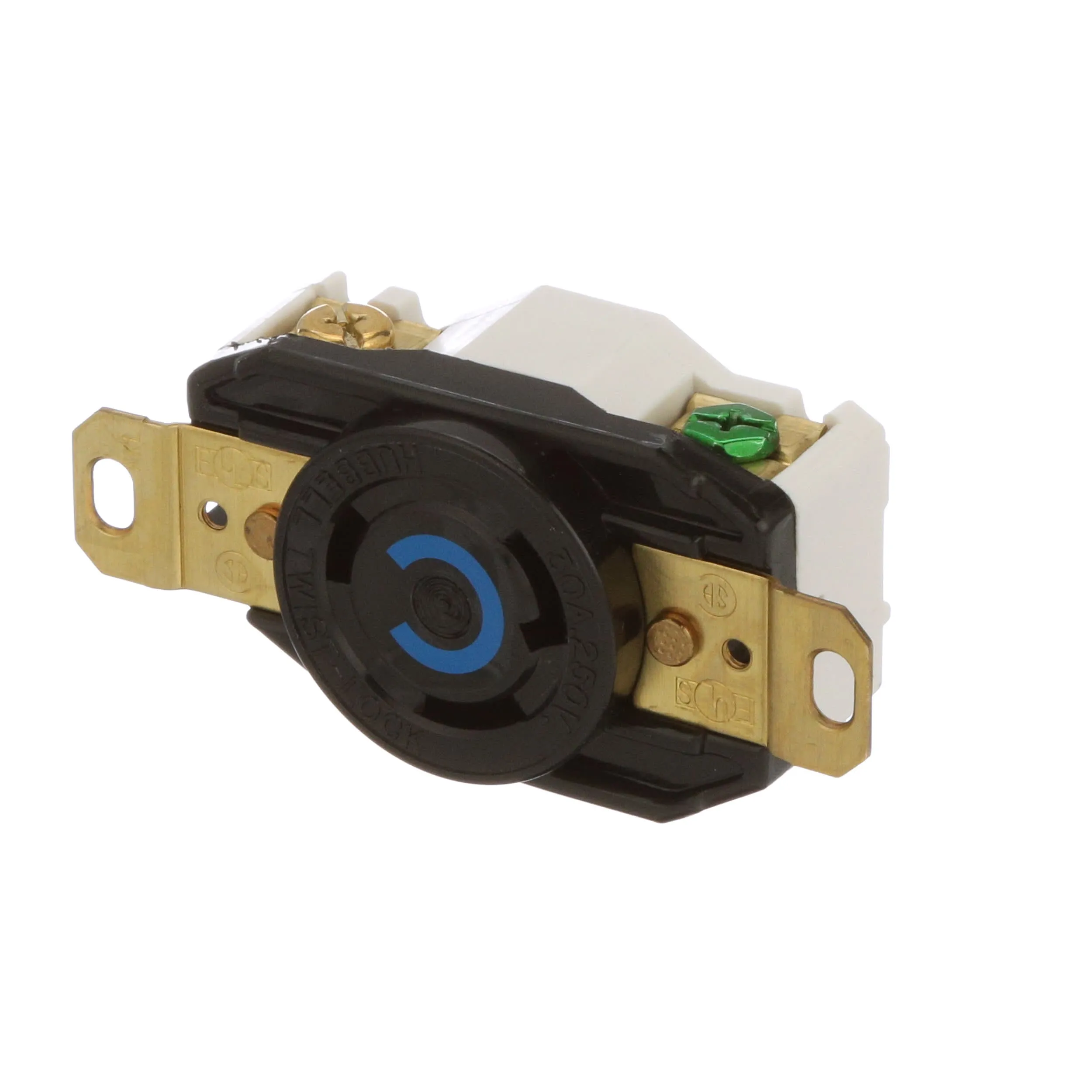

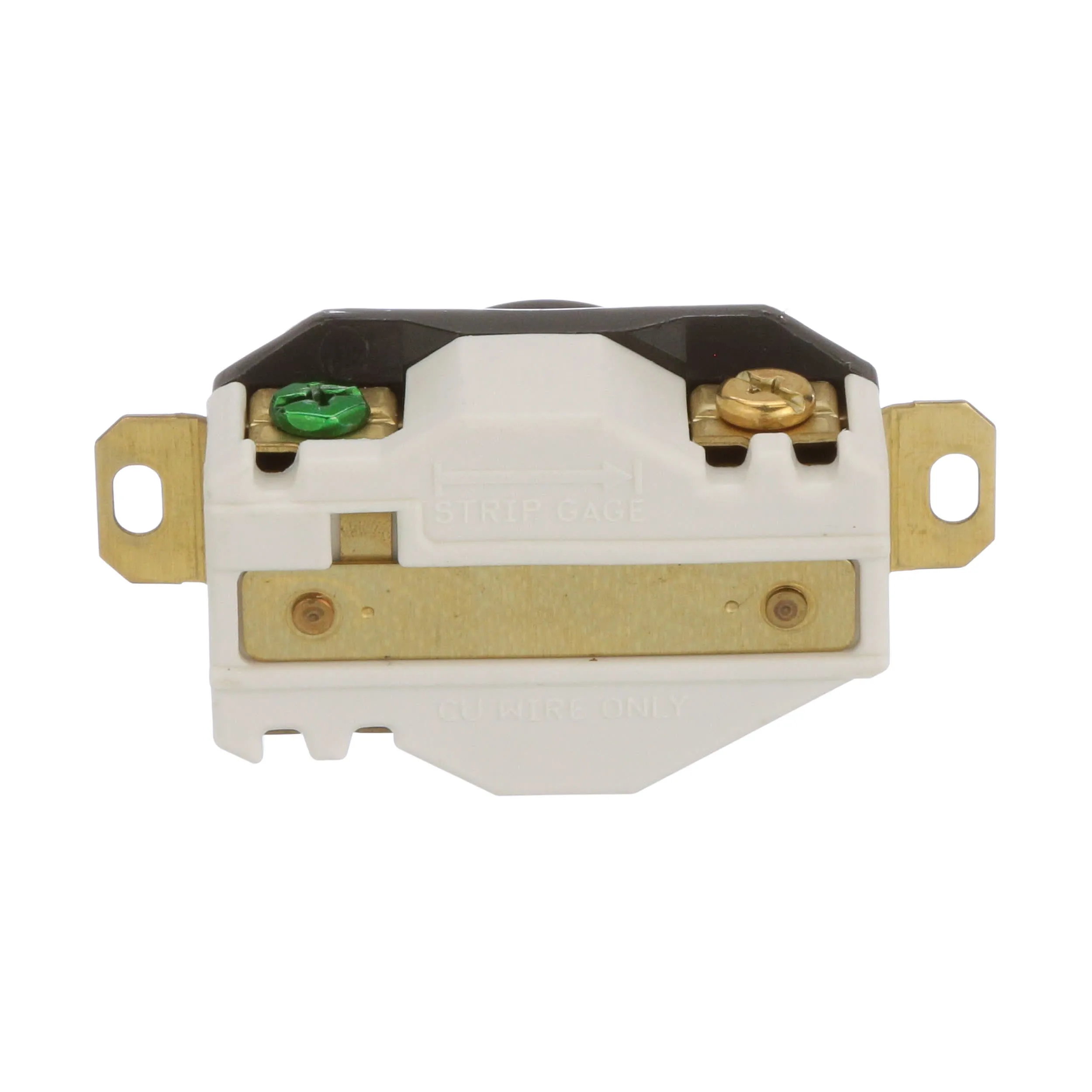

| Product Header | Twist-Lock Receptacle |
| Series | |
| Special Features | Locking |
| Standards | UL Listed, CSA Certified |
| Temperature Range | -40 to 75 °C |
| Terminal, Accommodation | 10 AWG |
| Termination | Screw |
| Type | Twist-Lock, Connector |
| UPC Code | 783585235998 |
| Voltage Rating | 250 VAC |
| Weight | 0.25 lbs. |
| Wire Size | #10 |
Overview
Hubbell Twist-Lock® Devices Family | Insulgrip Series — Straight Blade and Twist-Lock® Devices:
Hubbell Insulgrip® plugs and connectors continue our long-standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the Entertainment Industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. It’s these and many other features that set Hubbell performance above all others.
The unparalleled acceptance and success of the Twist Lock® line is a tribute to the quality of this long lasting design. When selecting premium plugs and connectors for the Entertainment Industry, the decision is Hubbell.
Insulgrip® Features:
Colored Cord Clamps Features:
