SAE J461, ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463

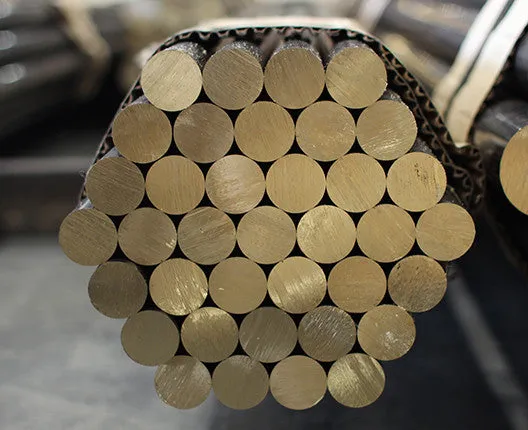

Typical Uses for C61400 Aluminum Bronze:
FASTENERS: Threaded Members, Stringers, Bolts, Nuts
INDUSTRIAL: Piping Systems, Structural Components, Machine Parts, Corrosion Resistant Vessels, Sea Water Piping, Condenser Tube and Piping Systems, Tube Sheets, Welded Pipe, Seamless Tubing and Pipe, Chutes for Abrasive Grains, Heat Exchanger Tubes, Mining Shovels, Tanks, Condenser Head Plates
MARINE: Fasteners, Protective Sheathing, Pressure Vessels, Marine Hardware, Welded Tanks ORDINANCE: Blending Chambers
Sizes Available From NBM
SOLID BAR: 3/8" - 4"
SHEET & PLATE: cut to size up to 2" thick
Specifications
| End Product | Specification |
| Bar | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Bolts | ASTM F468 |
| Nuts | ASTM F467 |
| Pipe | ASTM B315 |
| Pipe, Welded | ASTM B608 |
| Plate | ASME SB169, ASTM B171, B169, FEDERAL QQ-C-450 |
| Plate, Bridge and Bearing | ASTM B100 |
| Plate, Clad | ASTM B432 |
| Plate, Condenser Tube | ASME SB171, ASTM B171 |
| Rod | ASME SB150, ASTM B150, SAE J463, J461 |
| Screws | ASTM F468 |
| Shapes | SAE J463, J461 |
| Sheet | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Strip | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Studs | ASTM F468 |
| Tube | ASTM B315 |
| Tube, Condenser | ASTM B111 |
| Al | Cu | Fe | Pb | Mn | P | Zn | |
| Min/Max | 6.0 - 8.0 | Rem | 1.5 - 3.5 | 0.01 | 1 | 0.015 | 0.2 |
| Nominals | 7.0000 | 91.0000 | 2.0000 | - | - | - | - |
| Product Type | Temper Type |
| Bar | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Bolts | ASTM F468 |
| Nuts | ASTM F467 |
| Pipe | ASTM B315 |
| Pipe, Welded | ASTM B608 |
| Plate | ASME SB169, ASTM B171, B169, FEDERAL QQ-C-450 |
| Plate, Bridge and Bearing | ASTM B100 |
| Plate, Clad | ASTM B432 |
| Plate, Condenser Tube | ASME SB171, ASTM B171 |
| Rod | ASME SB150, ASTM B150, SAE J463, J461 |
| Screws | ASTM F468 |
| Shapes | SAE J463, J461 |
| Sheet | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Strip | ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461 |
| Studs | ASTM F468 |
| Tube | ASTM B315 |
| Tube, Condenser | ASTM B111 |
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength | YS 0.05% UL | YS 0.02% Offset | YS 0.005% Offset | Elong. | RH B | RH C | RH F | RH 30T | VH 500 | BH 500 | BH 3000 | Shear Strgth | Fatigue Strgth | Izod Impact Strgth |
| - | in. | % | - | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| - | mm. | - | - | C | MPa | MPa | MPa | MPa | - | - | - | - | - | - | - | - | MPa | MPa | J |
| FLAT PRODUCTS | |||||||||||||||||||
| O60 | 1 | 68 | 76 | 33 | - | - | - | - | - | - | - | - | - | - | 40 | 28 | |||
| O60 | 25.4 | 0 | TYP | 20 | 524 | 228 | - | - | 45 | 81 | - | - | - | - | - | - | 276 | 193 | 0 |
| H04 | 0.13 | 68 | 89 | 60 | - | - | - | - | - | - | - | - | - | - | - | - | |||
| H04 | 3.18 | 0 | TYP | 20 | 614 | 414 | - | - | 32 | 87 | - | - | - | - | - | - | - | - | 0 |
| H04 | 0.5 | 68 | 80 | 54 | - | - | - | - | - | - | - | - | - | - | - | - | |||
| H04 | 12.7 | 0 | TYP | 20 | 552 | 372 | - | - | 38 | 85 | - | - | - | - | - | - | - | - | 0 |
| O60 | 0.5 | 68 | 78 | 35 | - | - | - | - | - | - | - | - | - | - | 40 | 25 | |||
| O60 | 12.7 | 0 | TYP | 20 | 538 | 241 | - | - | 42 | 82 | - | - | - | - | - | - | 276 | 172 | 0 |
| H04 | 1 | 68 | 78 | 45 | - | - | - | - | - | - | - | - | - | - | - | - | |||
| H04 | 25.4 | 0 | TYP | 20 | 538 | 310 | - | - | 40 | 84 | - | - | - | - | - | - | - | - | 0 |
| H04 | 0.31 | 68 | 85 | 58 | - | - | - | - | - | - | - | - | - | - | - | - | |||
| H04 | 7.9 | 0 | TYP | 20 | 586 | 400 | - | - | 35 | 86 | - | - | - | - | - | - | - | - | 0 |
| O60 | 0.31 | 68 | 80 | 40 | - | - | - | - | - | - | - | - | - | - | 42 | 26 | |||
| O60 | 7.9 | 0 | TYP | 20 | 552 | 276 | - | - | 40 | 83 | - | - | - | - | - | - | 290 | 179 | 0 |
| O60 | 0.13 | 68 | 82 | 45 | - | - | - | - | - | - | - | - | - | - | 45 | 30 | |||
| O60 | 3.18 | 0 | TYP | 20 | 565 | 310 | - | - | 40 | 84 | - | - | - | - | - | - | 310 | 207 | 0 |
| ROD | |||||||||||||||||||
| H04 | 0.5 | 68 | 85 | 45 | - | - | - | - | - | - | - | - | - | - | 48 | - | |||
| H04 | 12.7 | 0 | TYP | 20 | 586 | 310 | - | - | 35 | 91 | - | - | - | - | - | - | 331 | - | 0 |
| H04 | 1 | 68 | 82 | 40 | - | - | - | - | - | - | - | - | - | - | 45 | - | |||
| H04 | 25.4 | 0 | TYP | 20 | 565 | 276 | - | - | 35 | 90 | - | - | - | - | - | - | 310 | - | 0 |
| H04 | 2.01 | 68 | 80 | 35 | - | - | - | - | - | - | - | - | - | - | 40 | - | |||
| H04 | 51 | 0 | TYP | 20 | 552 | 241 | - | - | 35 | 88 | - | - | - | - | - | - | 276 | - | 0 |
| 0.47 | 68 | 80 | 40 | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| 12 | 0 | TYP | 20 | 550 | 275 | - | - | 30 | - | - | - | - | - | - | - | - | - | 0 | |
| 68 | 75 | 35 | - | - | - | - | - | - | - | - | - | - | - | - | |||||
| 15-Dec | 20 | 515 | 240 | - | - | 30 | - | - | - | - | - | - | - | - | - | 0 | |||
| 0.98 - 1.97 | 68 | 70 | 32 | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| 25 - 50 | 20 | 485 | 220 | - | - | 30 | - | - | - | - | - | - | - | - | - | 0 | |||
| 1.97 - 3.15 | 68 | 27 | 30 | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| 50 - 80 | 20 | 185 | 205 | - | - | 30 | - | - | - | - | - | - | - | - | - | 0 |
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.0 . 10-6 per oF (68-572 F) | 16.2 . 10 6? per å¡C (20-300 C) |
| Density | 0.285 lb/in3 @ 68 F | 7.89 gm/cm3 @ 20 C |
| Electrical Conductivity | 14 %IACS @ 68 F | 0.082 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 74.1 ohms-cmil/ft @ 68 F | 12.32 microhm-cm @ 20 C |
| Melting Point Liquid US | 1915 F | 1046 C |
| Melting Point Solid US | 1905 F | 1041 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
| Modulas of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 7.89 | 7.89 |
| Specific Heat Capacity | 0.09 Btu/lb/å¡F @ 68 F | 377.1 J/kg . å¡K at 293 K |
| Thermal Conductivity | 39.0 Btu . ft/(hr . ft2 . å¡F) @ 68 F | 67.5 W/m . å¡K at 20 C |
| Joining Technique | Suitability |
| Brazing | Fair |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Good |
| Coated Metal Arc Welding | Good |
| Gas Sheilded Arc Welding | Good |
| Machinability rating | 40 |
| Machinability rating | 20 |
| Oxyacetylene Welding | Not Recommended |
| Seam Weld | Good |
| Spot Weld | Good |
